Buffalo Atlee Wind

Nov 20, 2023, 16:13 PM
The Buffalo Atlee Wind Farm is located in Southern Alberta, approximately 100 km northwest of Medicine Hat.
List Title : Buffalo Atlee Wind
Page title : Buffalo Atlee Wind
Detailed location : Jenner, Alberta
Client : Capstone Infrastructure
Consultant :
Contract type : Balance of Plant Engineering, Procurement & Construction
Project value : Confidential
Project size : 67 MW
Duration : 15 Months
Award :
Lead certification level :
Featured : No

The Buffalo Atlee Wind Farm is located in Southern Alberta, approximately 100 km northwest of Medicine Hat. The project is developed, owned and to be operated by Capstone Infrastructure. Bird was the prime EPC contractor and self-performed majority of the work. The project is rated for 67 MW and includes installing 13 SG145 5.2MW wind turbine generators (WTGs), 12 km of collector cables (3ph), 4 switching stations, meteorological tower, gravity foundations, and access roads. Bird’s scope of work also included engineering, testing, commissioning and energization.






Delivery Model :
Services :
Markets :
Location :
Sector : Environmental

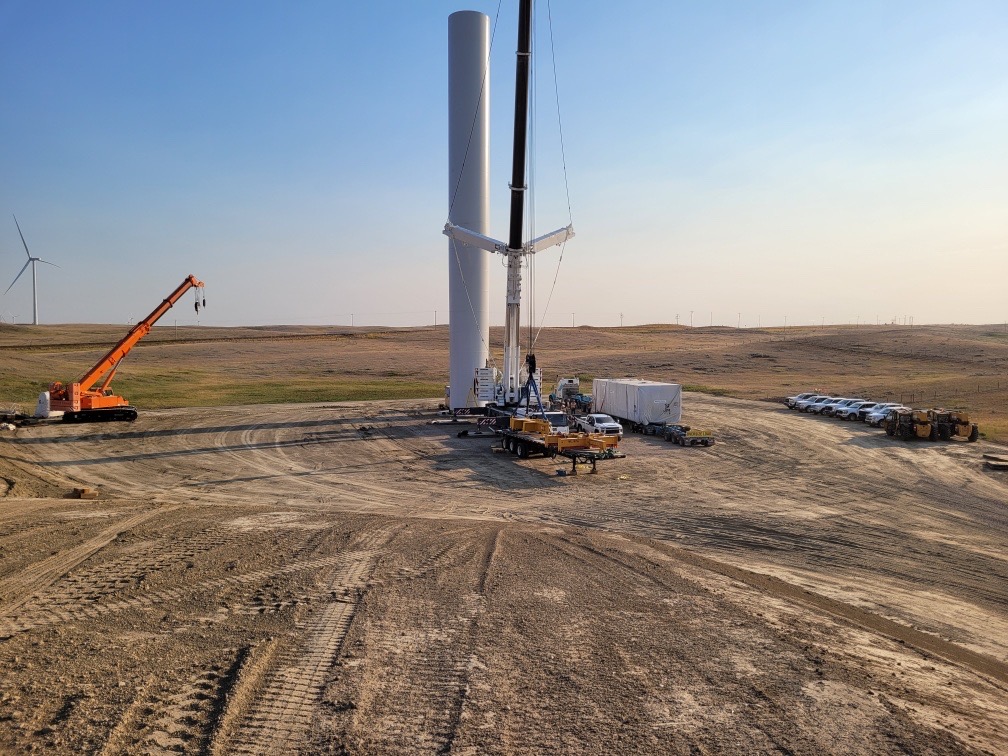

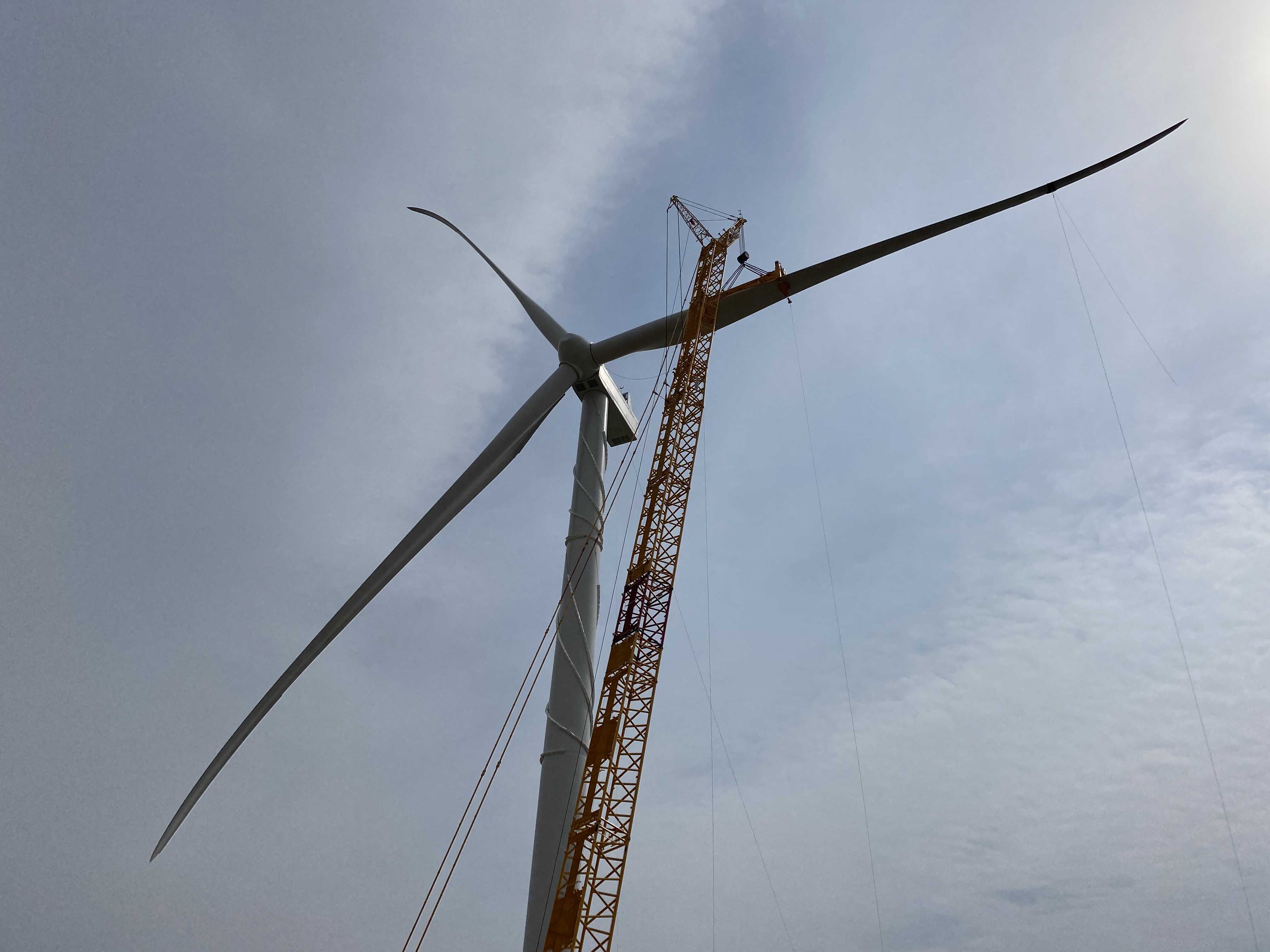

Construction of wind turbine Construction of wind turbine
