High Voltage Test Facility
Feb 20, 2020, 03:51 AM
The high voltage test facility for Manitoba Hydro is one of only three high voltage test facilities in Canada capable of assessing 550-kilovolt alternating and 500-kilowatt direct current equipment.
List Title :
High Voltage Test Facility
Page title :
Manitoba Hydro High Voltage Test Facility
Detailed location :
Winnipeg, Manitoba
Client :
Manitoba Hydro
Consultant :
AECOM & SNC-Lavalin
Contract type :
Stipulated Sum
Project value :
$23,000,000
Project size :
5,853 sq. m<br>(63,000 sq. ft)
Duration :
30 months
Award :
Lead certification level :
Featured :
No

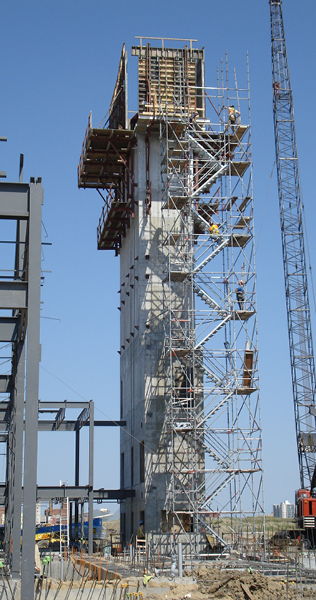

The facility is an eight-storey clear-span test hall attached to a two-storey office and warehouse. Among the special features of this project is an extensive grounding system that is incorporated into the entire structure. More than 7,700 kilograms of copper mesh is cast within the structural slab. In order to prevent the entry or escape of an electromagnetic field, the mesh is connected to the metal cladding and foundation rebar directing the path of grounding through the driven precast piles. Our team's accuracy and attention to detail was paramount to the success of the grounding system - our commitment to quality assurance and control has ensured that all tests performed within this facility can be executed safely.
[[Auto Insert Gallery here]]
Delivery Model :
General Contracting
Markets :
- Process/Non-Process Buildings
Location :
Manitoba
Sector :
Power
