Langara College Sub

Feb 20, 2020, 03:54 AM
A combination of new construction and upgrades, Bird entered a design-assist contract with the client to complete the student union building and C building.
List Title : Langara College Sub
Page title : Langara College Student Union Building and C Building
Detailed location : VANCOUVER, BRITISH COLUMBIA
Client : Langara College
Consultant : Teeple Architects Inc.
Contract type : Design Assist
Project value : $18,000,000
Project size : 17,900 sq. ft.
Duration : 20 months
Award :
Lead certification level : GOLD
Featured : No

This Student Union Building and C Building included multiple aspects of new construction and upgrades. A seismic upgrade to an existing six-storey building, which was originally used as a library, was completed by adding concrete shear walls internally. Numerous options were reviewed and the final shear wall system was chosen as it could accommodate the functional changes and incorporate the mechanical and electrical system upgrades. The new two-storey SUB included inclined walls, sloping roofs and large thin cantilevers. The form was achieved by using a total concrete structure so that the floors and walls could be formed in various profiles to achieve the desired appearance.

Notably, the complex is the first ever construction to feature Thermenex, a revolutionary thermal energy exchange system. The complex produces zero greenhouse gas emissions from heating and cooling as it employs a unique direct energy transfer system that stores energy and moves it throughout the buildings to areas where it is required for heating and cooling. Bird also installed a geothermal heating system. The project has officially received LEED® Gold certification.

Delivery Model : General Contracting
Services :
  • LEED/Sustainable Construction
Markets :
  • Education
Location : British Columbia
Sector : Buildings

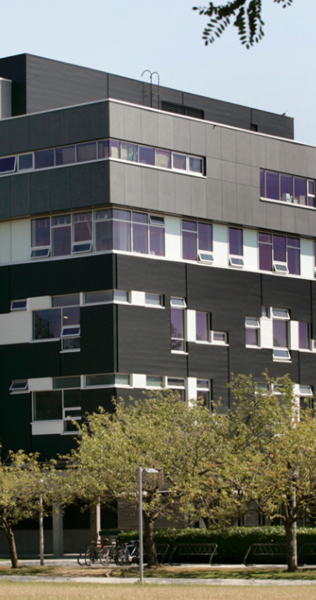

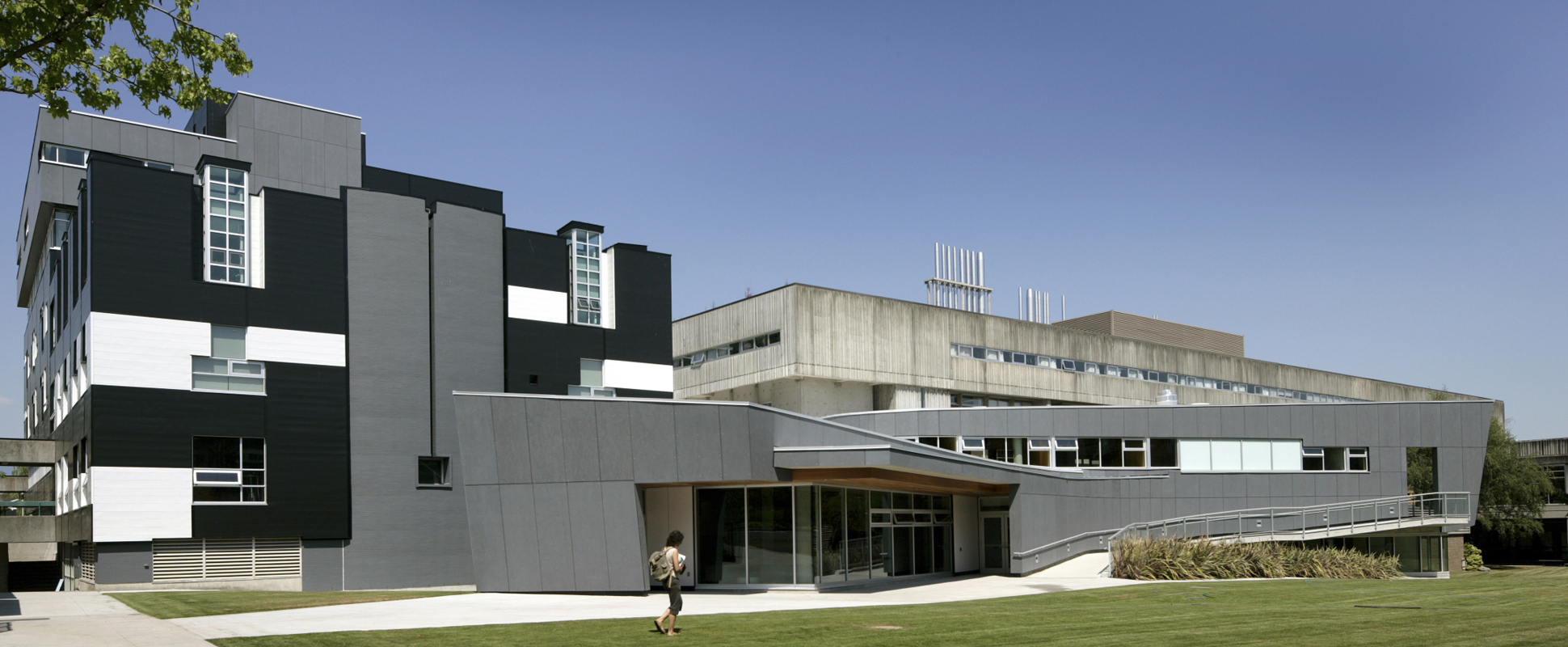

Langara College Student Union Building exterior Facade of the Langaran College building showing different cladding finishes
